Introduction
FILK offers clients the widest range of fire tests in Korea for the fire protection, construction, marine and other industries. As a KOLAS accredited laboratory, we can comprehensively test, predict and assess the fire performance of products and materials to various international test standards. Our fire tests may also form the basis of FILK Quality certification schemes or the requirements of other approval bodies, such as US Coast Guard, BV, and other shipping registers.
Classification
General testing : testing services to standards offered by clients through FILK quality system and test procedures Regulatory testing : testing for clients to enable them to demonstrate compliance with relevent standards and regulations set by the national and international approval bodies.
Test Products
| Team | Area | Contact | |||
|---|---|---|---|---|---|
| Tel. | |||||
| Risk and Safety Research Center | Reaction to Fire | Combustion | Flame Propagation, Gas Hazard, Non-combustibility, Heat Release Rate | +82-31-887-6662 | jinmi@kfpa.or.kr |
| Smoke and Toxicity | +82-31-887-6677 | gayeong@kfpa.or.kr | |||
| Real Scale fire | Full-scale Fire Test for Exterior Wall Cladding Systems(KS F 8414) | +82-31-887-6675 | iidarkii@kfpa.or.kr | ||
| Reaction to fire test for sandwich panel building systems－Part 1：Small room test(KS F ISO 13784-1, ISO 13784-1) | +82-31-887-6619 | ycshin@kfpa.or.kr | |||
| Standard test method for measuring the heat release rate of low flammability mattresses and mattress sets(KS F ISO 12949, ISO 12949, 16 CFR Part 1633) | +82-31-887-6619 | ycshin@kfpa.or.kr | |||
| Reaction to fire tests - Room corner test for wall and ceiling lining products - Part 1: Test method for a small room configuration(KS F ISO 9705-1, ISO 9705-1) | +82-31-887-6619 | ycshin@kfpa.or.kr | |||

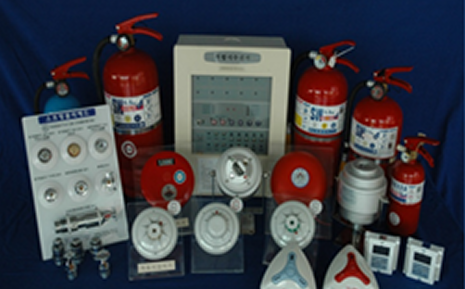

| Fire-Fighting Equipment | Sensitivity, Operation, Heat Resistance, Impact, Corrosion, Internal Pressure, etc. | +82-31-887-6653 | bhan@kfpa.or.kr | ||
| +82-31-887-6654 | kwark@kfpa.or.kr | ||||
| Electrical Fire | Sensitivity, Ambient Temperature, Power Voltage Fluctuations, Electrostatic Radiation, Impact, Humidity, etc. | +82-31-887-6673 | pst7203@kfpa.or.kr | ||
| Fire | Flame Resistance, Fire Resistance Performance(Nuclear Power Plant/General Cable), Demonstration Test(Electrical Equipment) | +82-31-887-6673 | pst7203@kfpa.or.kr | ||
| Fire extinguishing agent adaptability, energy storage system (ESS) | +82-31-887-6653 | bhan@kfpa.or.kr | |||
| Automotive fire resistance performance (fuel tank, battery pack) | +82-31-887-6655 | junesuklee@kfpa.or.kr | |||

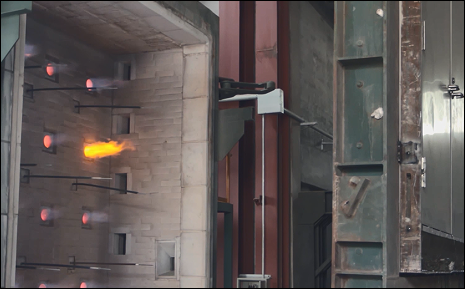

| Fireproof Resistance | Fire Door, Hardware, Lift Landing Door | +82-31-887-6688 | jskim@kfpa.or.kr | ||
| +82-31-887-6719 | sjlee@kfpa.or.kr | ||||
| Beam, Floor, Column, High-Strength Concrete, Roof, Downward Evacuation Exit | +82-31-887-6685 | dhkim@kfpa.or.kr | |||
| Fire Damper, Window, Wall | +82-31-887-6684 | hwseo@kfpa.or.kr | |||
| Fire Stop, Fire Shutter, Ship Products, Fireproof safe | +82-31-887-6719 | sjlee@kfpa.or.kr | |||
| BuildingEnvironment | Heat Flow/Condensation Prevention Performance | +82-31-887-6697 | mjkim@kfpa.or.kr | ||
| Watertightness/Airtightness/Wind Pressure Resistance | |||||
| Sound Absorption and Sound Insulation | +82-31-887-6737 | jhjeong@kfpa.or.kr | |||
| Noise Performance, Floor Impact Sound | |||||
| Construction Materials | Dust Amount, Panel Strength | +82-31-887-6697 | mjkim@kfpa.or.kr | ||
| FireEvacuation | Full-scale fire safety | +82-31-887-6696 | kwpark@kfpa.or.kr | ||
| +82-31-887-6619 | ycshin@kfpa.or.kr | ||||
| Acoustic Diffusion Coefficient, Evacuation Acoustics | +82-31-887-6694 | jhjeong@kfpa.or.kr | |||
| Renewable Energy Safety Research Center | Fire | Battery Fire Performance Test, ESS Safety Test, etc. | +82-31-887-6663 | mwpark@kfpa.or.kr | |
| +82-31-887-6656 | shl@kfpa.or.kr | ||||
| +82-31-887-6659 | donghwankim@kfpa.or.kr | ||||
Shipping Materials
FILK performs tests in accordance with IMO FTP Codes, which serve as the basis for the requirements of maritime approval bodies such as BV.
| team | Area | Test Method | Contact | |
|---|---|---|---|---|
| Tel. | ||||
| Risk and Safety Research Center |
Part 1: Non-combustibility Test Part 2: Smoke & Toxicity Test Part 5: Surface Flammability Test Part 6: Primary Deck Covering Test |
ISO 1182:1990 As described in Part 2 Res.A.653(16) Res.A.653(17) |
+82-31-887-6662 | jinmi@kfpa.or.kr |
|
Part 3 : Test for "A","B" & "F" class division Part 4 : Test for fire control systems |
Res. A.754(18) As described in Part 4 | +82-31-887-6719 | sjlee@kfpa.or.kr | |
| For more information on Part 2: Smoke & Toxicity Test, Part 5: Surface Flammability Test, Part 6: Primary Deck Covering Test |
||||
USCG Type Approval Testing Service
FILK was recognized by the United States Coast Guard (USCG) in August 2002 to conduct fire testing in accordance with IMO FTP Code Parts 1, 3, 4, 5, and 6 for Type Approval Certification. FILK was the first laboratory in Asia and remains one of only 15 USCG-approved fire testing laboratories worldwide. As a USCG-recognized laboratory, FILK conducts rigorous fire tests and assessments of ship components such as insulation materials, fire doors, bulkhead panels, ceilings, deck assemblies, and interior finishes on behalf of the USCG. Additionally, FILK supports the manufacturers' quality management systems through its FILK Follow-Up Service, ensuring ongoing compliance with USCG certification requirements.
| team | Area | Test Method | Contact | |
|---|---|---|---|---|
| Tel. | ||||
| Risk and Safety Research Center |
Part 1: Non-combustibility Test Part 2: Smoke & Toxicity Test Part 5: Surface Flammability Test Part 6: Primary Deck Covering Test |
ISO 1182:1990 As described in Part 2 Res.A.653(16) Res.A.653(17) |
+82-31-887-6662 | jinmi@kfpa.or.kr |
| Part 3 : Test for "A","B" & "F" class division Part 4 : Test for fire control systems |
Res. A.754(18) As described in Part 4 | +82-31-887-6719 | sjlee@kfpa.or.kr | |

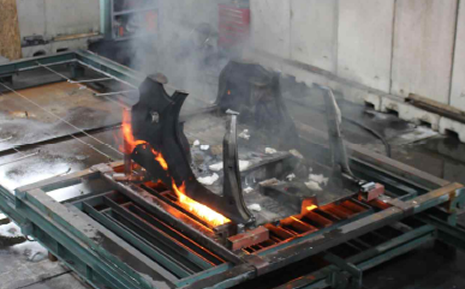

TUV CERTIFICATION TEST(Fire resistant test of the plastic fuel tank for vehicles)
Fire resistant test of the plastic fuel tank for vehicles is to assess the fire resistance performance and air tightness of the fuel tank by heating the tank specimen directly and indirectly with gasoline for 2 minutes. Test equipment consists of fuel pan, screen, chassis transport, rail, and control panel
Fire Test Standards
- EEC Directive 70/221/EEC(Annex I/6.3.5)
- ECE Regulation 34(Annex 5/5)
Test Equipment
| ITEM | USE | SPECIFICATIONS |
|---|---|---|
| Fuel pan | Direct flaming | 1,600(L)×1,200(W), Steel |
| Screen | Indirect flaming | 2,300(L)×1,600(W), Blucks |
| Chassis Moving device | Moving chassis | 2,600(L)×2,300(W), Steel |
| Rail | Moving screen & fuel tank | 10m, Steel |
| Wireless control,Cabinet type | Controlling the equipment |
| Team | Contact | |
|---|---|---|
| Tel. | ||
| Risk and Safety Research Center | +82-31-887-6655 | junesuklee@kfpa.or.kr |

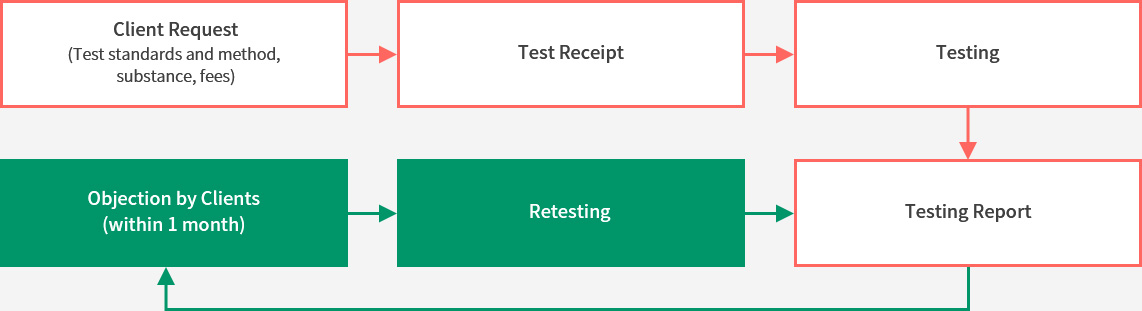

Test Procedures
Test procedures are as following, and products to be tested and fees should be sent to us before testing.
You can pay test fees through bank accounts or credit cards.
Contact with the relevant testing lab about the details such as fees and schedules you need.
* Korean Won is the standard currency in Korea, but foreigners may pay with USD. Payment should be completed within 7 days after you receive an estimate.
1030, GYEONGCHUNG-DAERO, GANAM-EUP, YEOJU-SI, GYEONGGI-DO, 12661, REPUBLIC OF KOREA
TEL +82 (31) 887 6600
Smoke and Toxicity Test (IMO. FTP Code Part 2)
Where a material is required not to be capable of producing excessive quantities of smoke and toxic products or not to give rise to toxic hazards at elevated temperatures, the material shall comply with this test. The maximum specific optical density of smoke (Ds max) shall be obtained for each test. When making toxicity measurements, the sampling of fumes shall be made during the testing of the second and the third specimen at each test condition, from the geometrical centre of the chamber at the time when the maximum specific optical density of smoke is reached. The concentration of each toxic gas shall be determined as parts per million (ppm) in the chamber volume.
Performance criteria
| Surface of bulkheads, linings or ceilings | Primary deck coverings | Floor coverings | Plastic pipes | ||
|---|---|---|---|---|---|
| Dm* | ≤ 200 | ≤ 400 | ≤ 500 | ≤ 400 | |
| Toxicity | CO | ≤ 1,450 ppm | |||
| HBr | ≤ 600 ppm | ||||
| HCl | ≤ 600 ppm | ||||
| HCN | ≤ 140 ppm | ||||
| HF | ≤ 600 ppm | ||||
| SO2 | ≤ 120 ppm (200 ppm for floor coverings) | ||||
| NOx | ≤ 350 ppm | ||||
*Dm is An average (Dm) of the maximum specific optical density of smoke (Ds max) of three tests at each test condition
Specimen preparation and test fee
| Test method | Dimensions(mm) | Number required | Test fee | Remark |
|---|---|---|---|---|
| IMO. FTP Code Part 2(Smoke & Toxicity Test) | ength : 75(-1), width : 75(-1), thickness : ??25 |
12 | 2,613,000 KRW (3,135,600 KRW) | For performance verification test (For Ship register type approval test) |
[ Smoke Density Chamber ]
[ Gas analyzer(FT-IR) ]
Application procedures
- a)Sending the specimens and required documents including specification of the specimen.
- b)Transfering the test fees into an account belows:
- c)Specification and structure of the specimen materials should be informed prior to application.
Test for Surface Flammability(IMO. Res. a. 653(16) or 687(17))
Where a product is required to have a surface with low flame-spread characteristics, the product shall comply with this test. Where the primary deck coverings are required to be not readily ignitable, they shall comply with this test. The test method involves mounting the conditioned specimen in a well-defined flux field and measuring the time of ignition, spread of flame and its final extinguishment, together with a stack thermocouple signal as an indication of heat release by the specimen during burning. The following data shall be derived from the test results : CFE, Qsb, Qt and Qp.
Performance criteria
| Bulkhead, wall and ceiling linings | Floor coverings | Primary deck coverings | |
|---|---|---|---|
| CFE (kW/m2) | ≥ 20.0 | ≥ 7.0 | ≥ 7.0 |
| Qsb (MJ/m2) | ≥ 1.5 | ≥ 0.25 | ≥ 0.25 |
| Qt (MJ) | ≤ 0.7 | ≤ 2.0 | ≤ 2.0 |
| Qp (kW) | ≤ 4.0 | ≤ 10.0 | ≤ 10.0 |
| Burning droplets | Not produced | No more than 10 burning drops | Not produced |
*Where:
- CFE = Critical flux at extinguishment
- Qsb = Heat for sustained burning
- Qt = Total heat release
- Qp = Peak heat release rate
Specimen preparation and test fee
| Test method | Dimensions(mm) | Number required | Test fee | Remark |
|---|---|---|---|---|
| 1. IMO. Res. A. 653(16)> 2. IMO. Res. A. 687(17) | length : 800(-5) width : 155(-5) thickness* | 6 | 1,605,500 KRW (1,926,600 KRW) | For performance verification test (For Ship register type approval test) |
* Materials and composites of normal thickness 50 mm or less shall be tested using their full thickness. For materials and composites of normal thickness greater than 50 mm, the required specimens shall be obtained by cutting away the unexposed face to reduce the thickness between 47 mm and 50 mm.
[ Smoke Density Chamber ]
Application procedures
- a)Sending the specimens and required documents including specification of the specimen.
- b)Transfering the test fees into an account belows:
- c)Specification and structure of the specimen materials should be informed prior to application.
